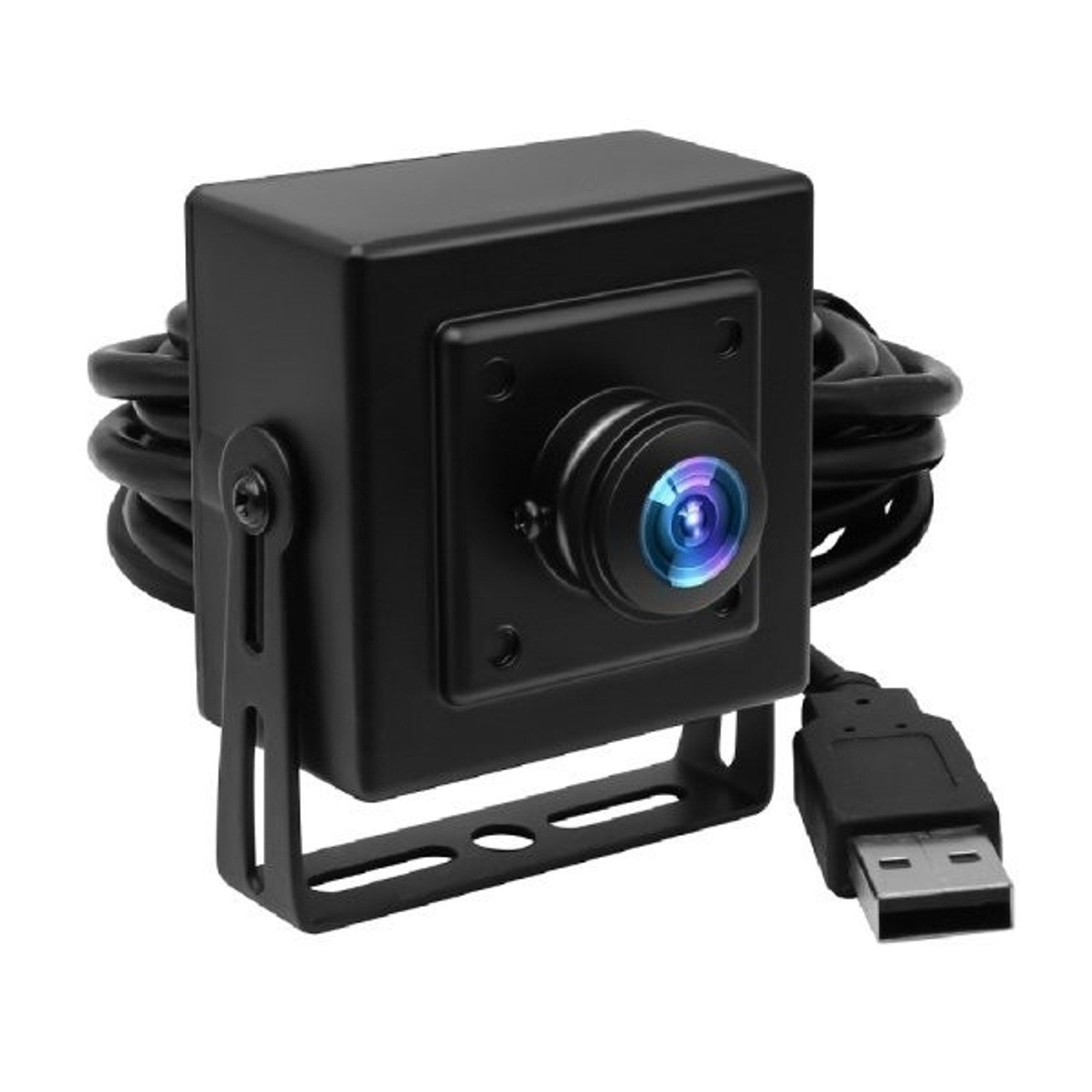

ELP Linux 2MP Full HD 1080P High Speed USB Camera Wecam 180 Degree Fisheye Lens

ELP LINUX 2MP FULL HD 1080P HIGH SPEED USB CAMERA WECAM WITH 180 DEGREE FISHEYE LENS

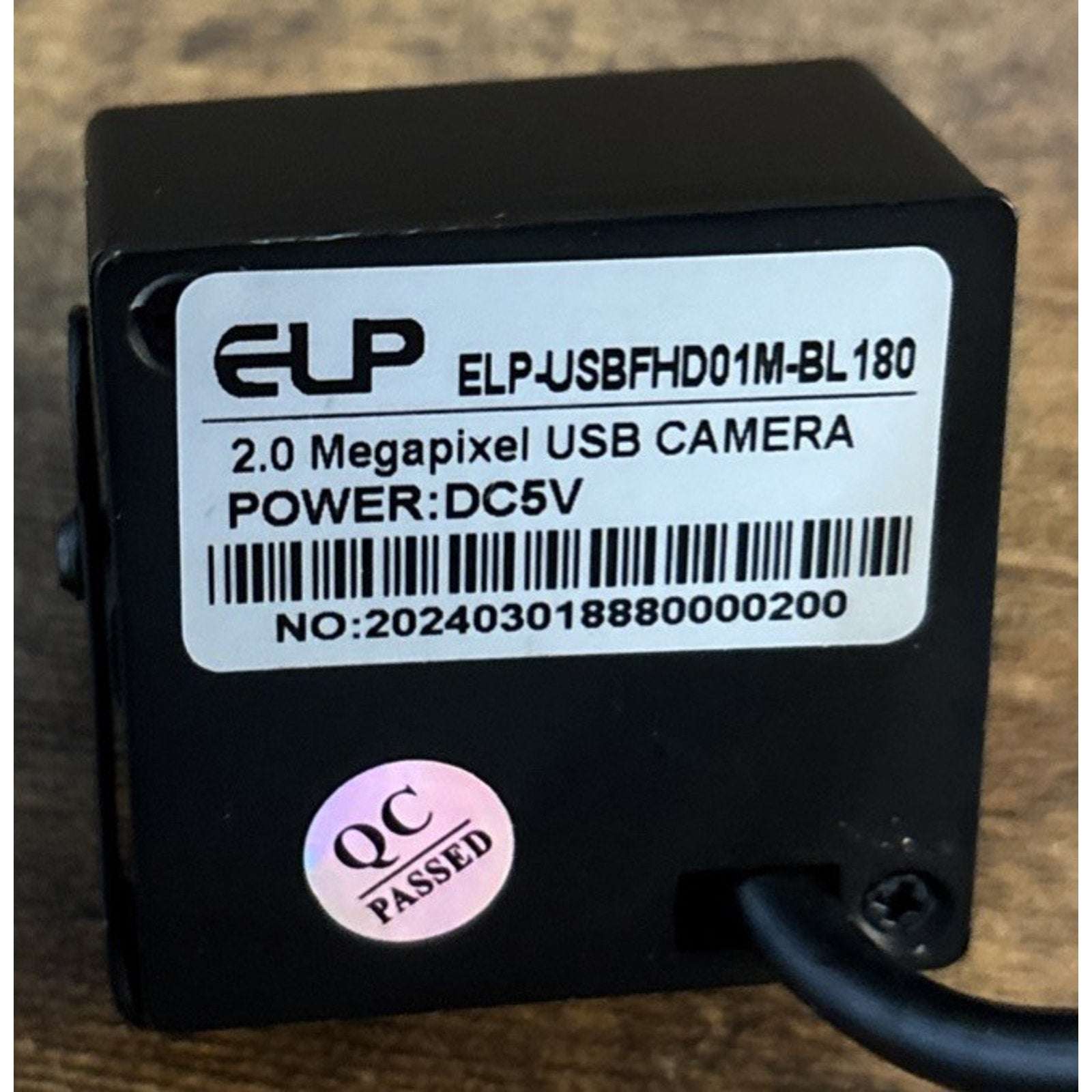

* Model: ELP-USBFHD01M-BL180

Features:
*High Speed 1080P HD USB Camera
*Equipped with wide angle view 180 degree fisheye lens
*Can drive 30fps@1080P and 60fps@720p 120fps @480P
*CMOS 1080P sensor for high quality image and low power consumption.
*High speed USB 2.0 interface for high resolution PC camera interface.
*high pixel technology for sharp image and accurate color reproduction.
*High quality lens, true and undistorted color image.
*Low power consumption – ideal for portable equipment.
*UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above.
*Camera with UVC.

General Description

The HD 1080P USB CMOS board camera module(model: ELP-USBFHD01M serials) is ideal for many applications like security systems, portable video system, video phones, industrial machine monitoring and toys. It use high quality image sensors made by
OmniVision, one of the world leaders in this field of electronics.

The USB camera module are ideal for equipment manufacturers, experimenters and hobbyists.

Specification:

Optional models

ELP-USBFHD01M-BL180

Sensor

1/3" CMOS OV2710

Lens size

200W, 2.0megapixel, 1920(H)x1080(V)pixels

Max. Resolution

1920X1080

Picture format

MJPEG

USB Protocal

USB2.0 HS/FS, USB1.1 FS

Support free driver

USB Video Class(UVC)1.1

Auto exposure AEC

Support

Auto white blance AEB

Support

Frame rate

1920 (H) x 1080 (V) pixels MJPEG 30fps YUY2 6fps
1280 (H) x 1024 (V) pixels MJPEG 30fps YUY2 6fps
1280 (H) x 720 (V) pixels MJPEG 60fps YUY2 9fps
1024 (H) x 768 (V) pixels MJPEG 30fps YUY2 9fps
800 (H) x 600 (V) pixels MJPEG 60fps YUY2 21fps
640 (H) x 480 (V) pixels MJPEG 120fps YUY2 30fps
352(H) x 288 (V) pixels MJPEG 120fps YUY2 30fps
320 (H) x 240 (V) pixels MJPEG 120fps YUY2 30fps

Adjustable parameters

Brightness/Contrast/Color saturation /Definition/Gamma/WB

Night vision

optional, can choose IR board

view angle

180 degree

voltage

DC 5V

current

150mA

work temperature

DEGREES(-20~70)

Size

32x32mm/38*38

Support OS

WinXP/Vista/WIN7/WIN8
Linux with UVC
Mac-OS X 10.4.8 or later
Wince with UVC
Android 4.0 or above

Applications:

Car and ship control, electronic equipment, oil field equipment, industrial equipment, remote site monitoring, environmental monitoring, etc.

used for all kinds of machine as below:

machinery equipment, all-in-one machine, POS equipment, STB, smart box TV BOX, advisement player, LED display, automatic
vending machine, safety box, notebook, video door phone, MID, Tablet external, evaluator, Medical Equipment, on-the-spot law
enforcement, door bell and button system, cat-eye system, simple security system, teaching system, Interactive system,
automobile data recorder. Project video capture, credit card machine, attendance machine, Voting system, High speed video
shooting Device, exam system, Driving learning system, Industrial camera, biological microscope, box inside surveillance, micro HD
surveillance, endoscope, Medical auxiliary equipment, etc.

Tags： 1080P USB Camera Module, Fisheye Lens USB Camera, USB Camera linux, USB Camera Module Manufacturer, USB Camera Android, Linux usb camera module, Oem Usb Camera Module, UVC USB Camera Module, Android uvc camera, USB 2.0 UVC Camera,

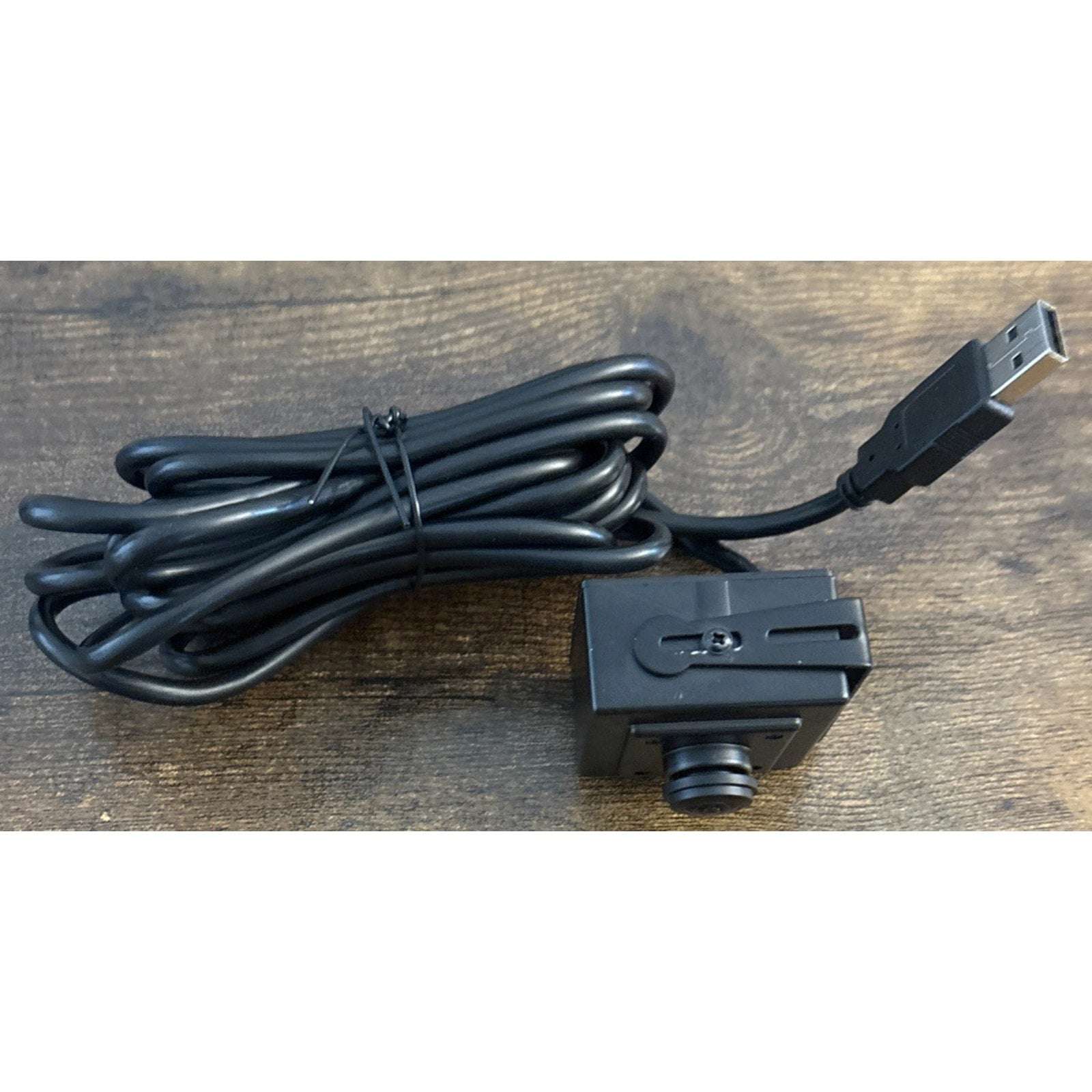

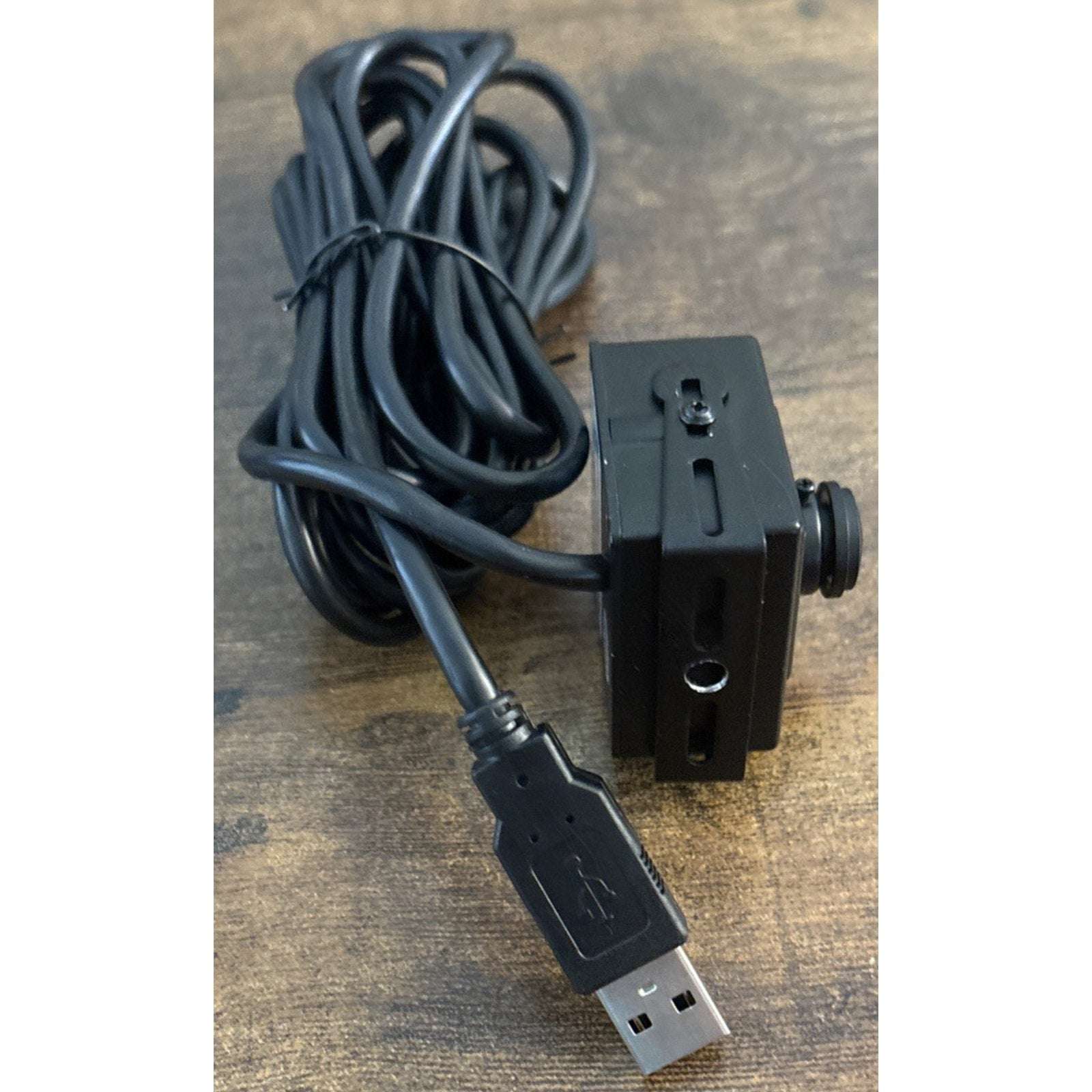

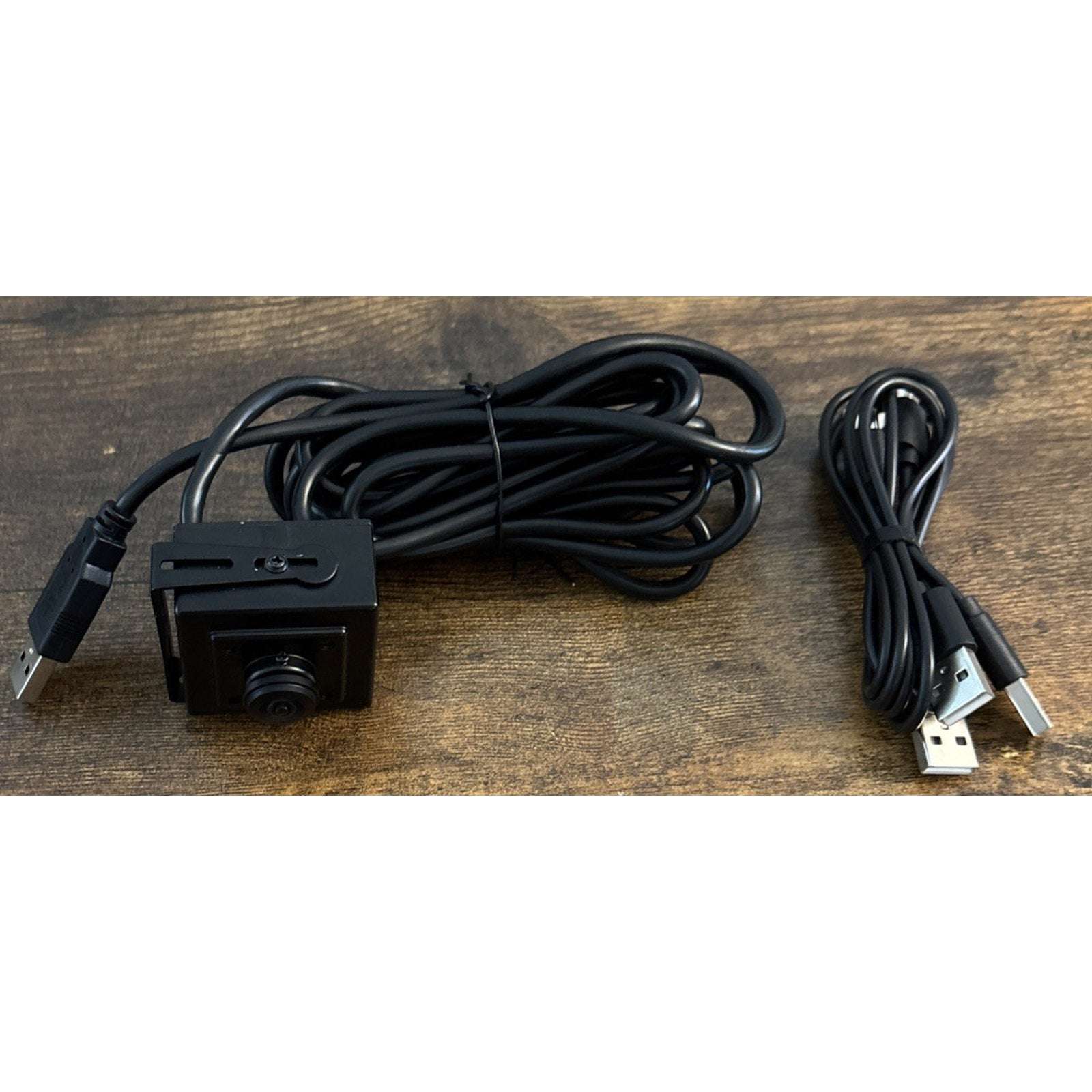

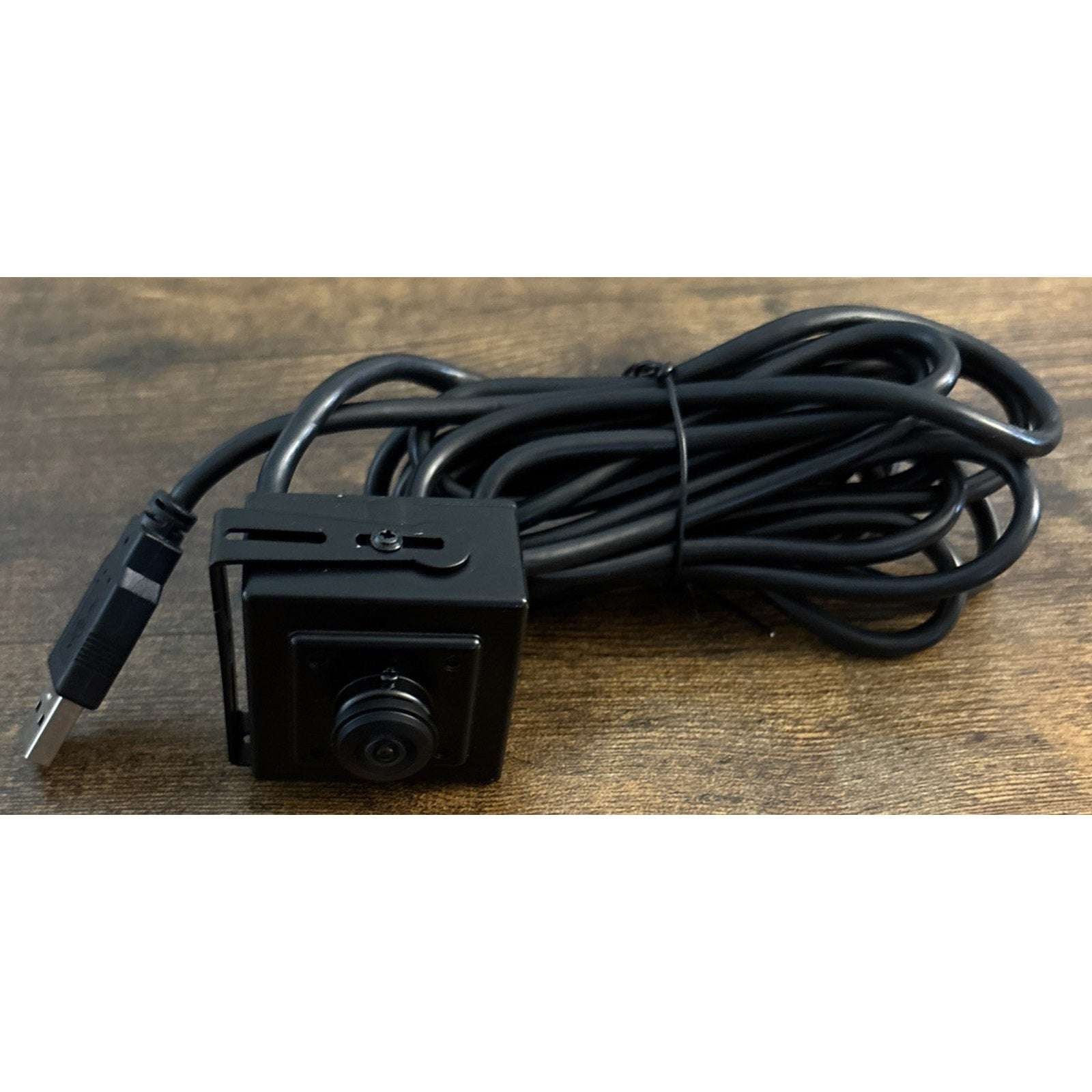

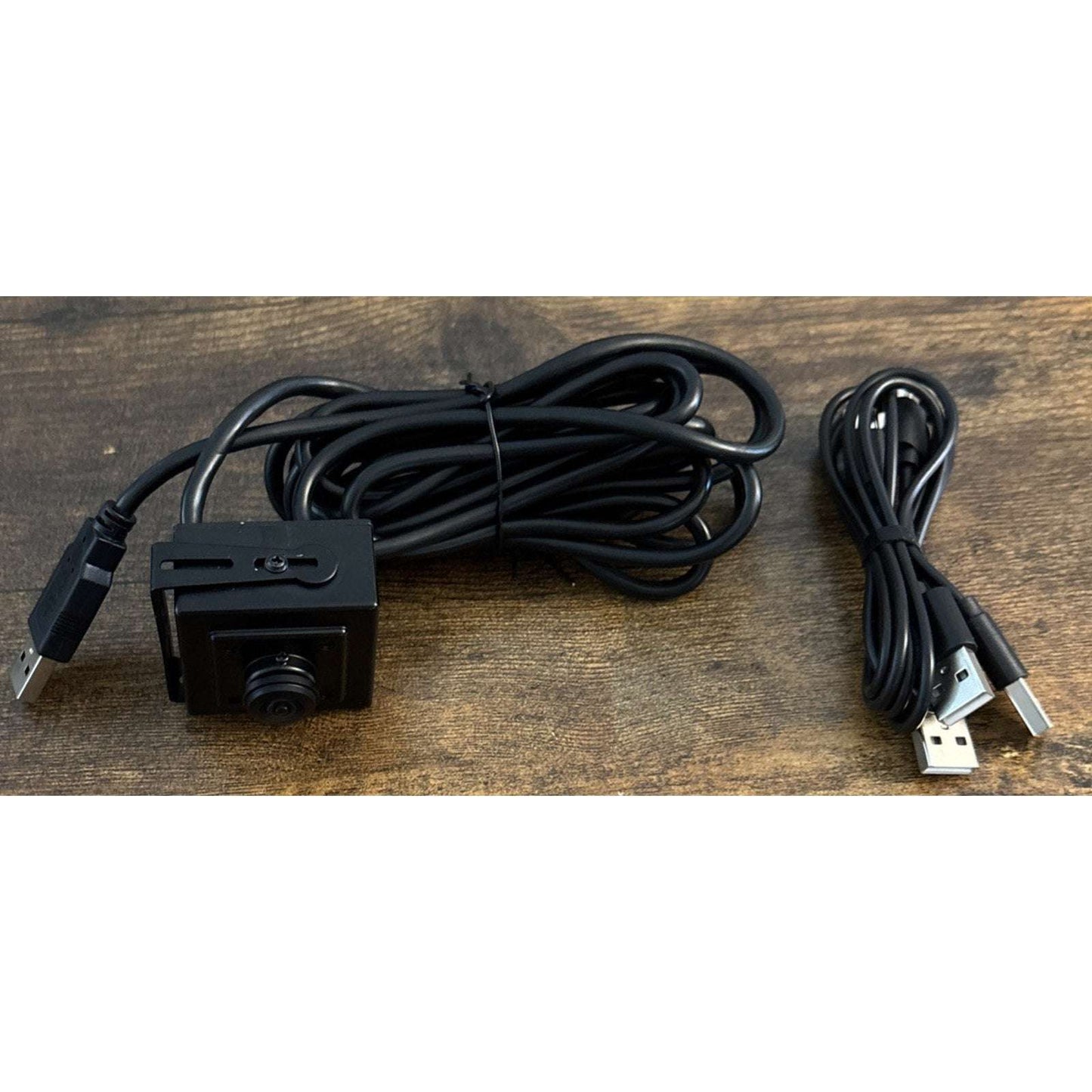

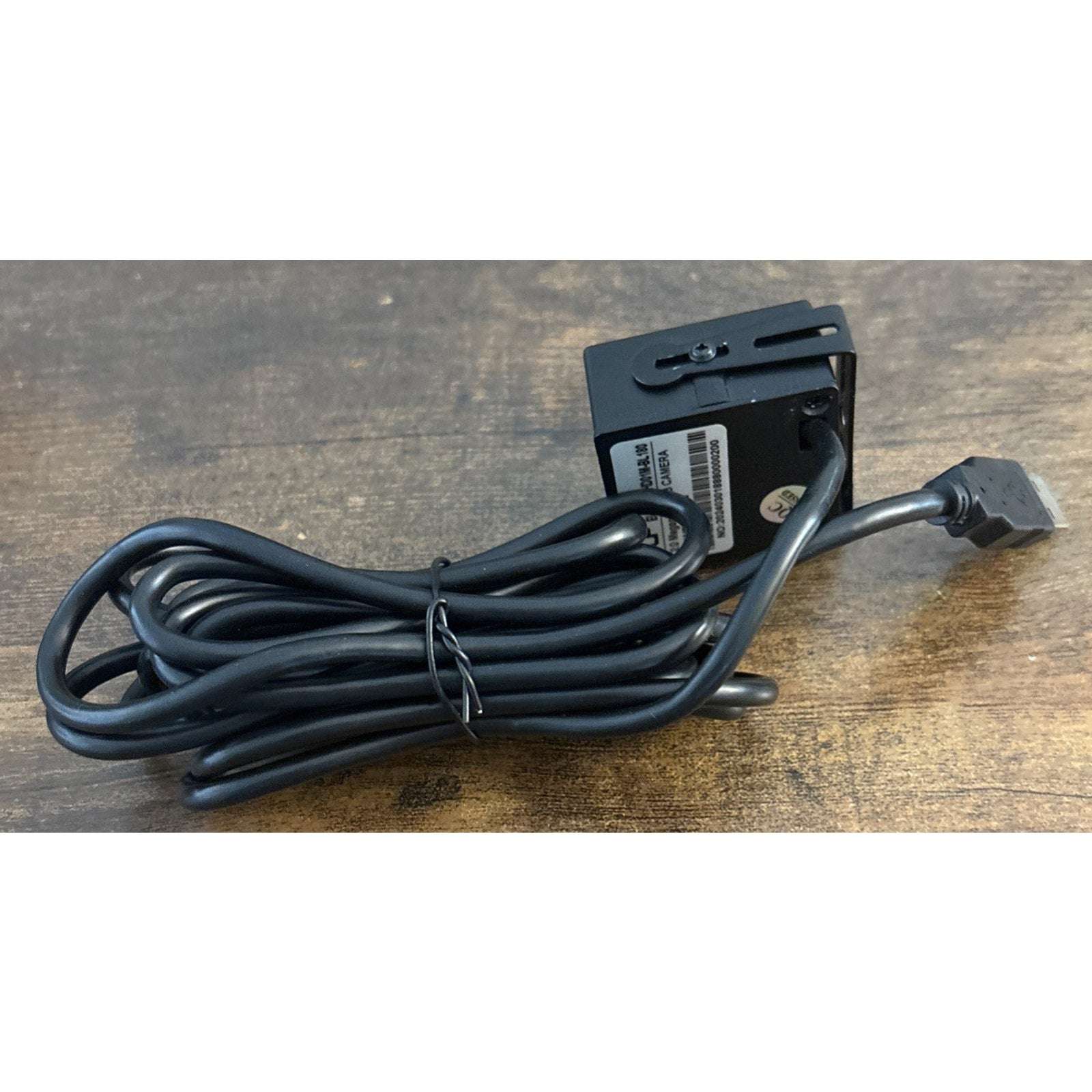

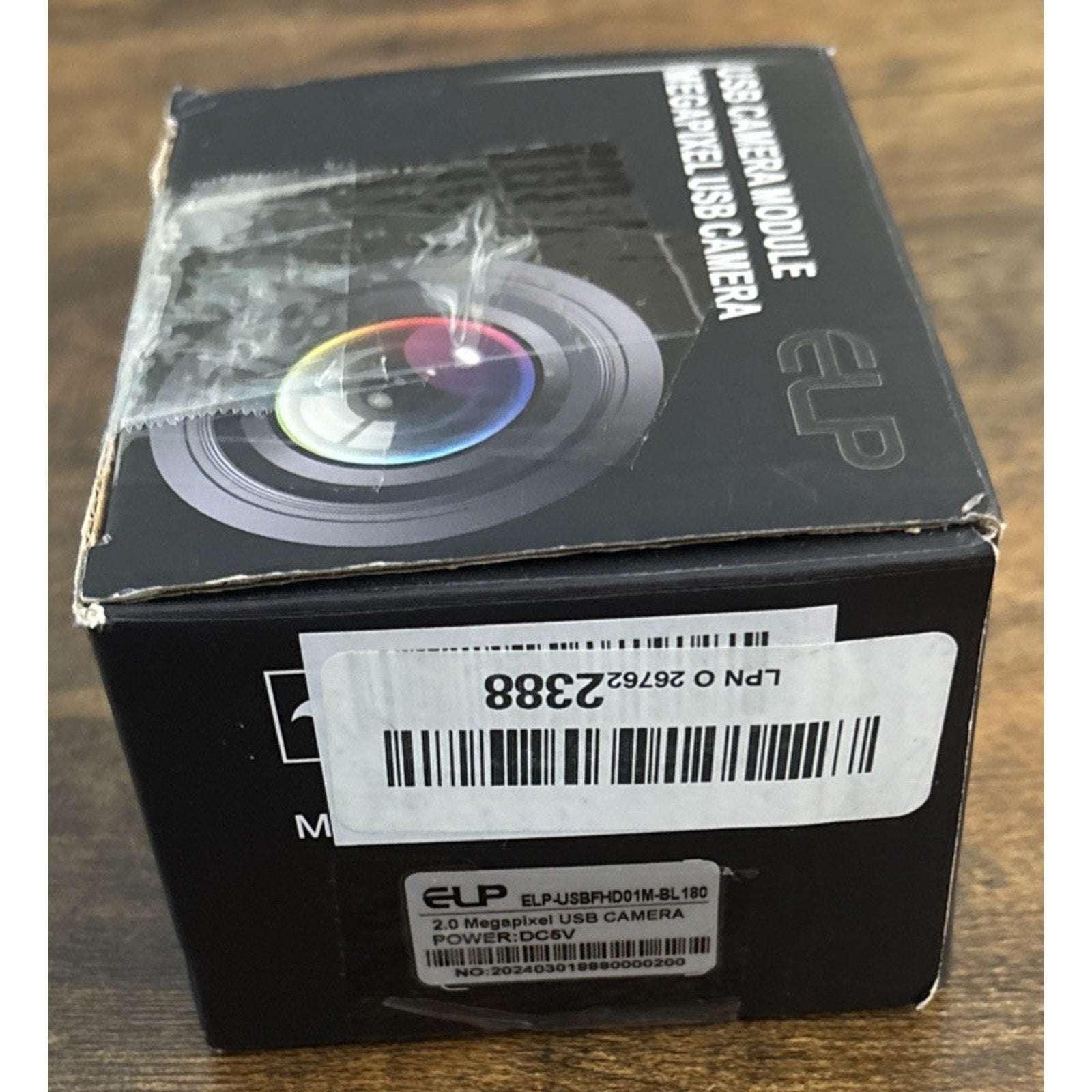

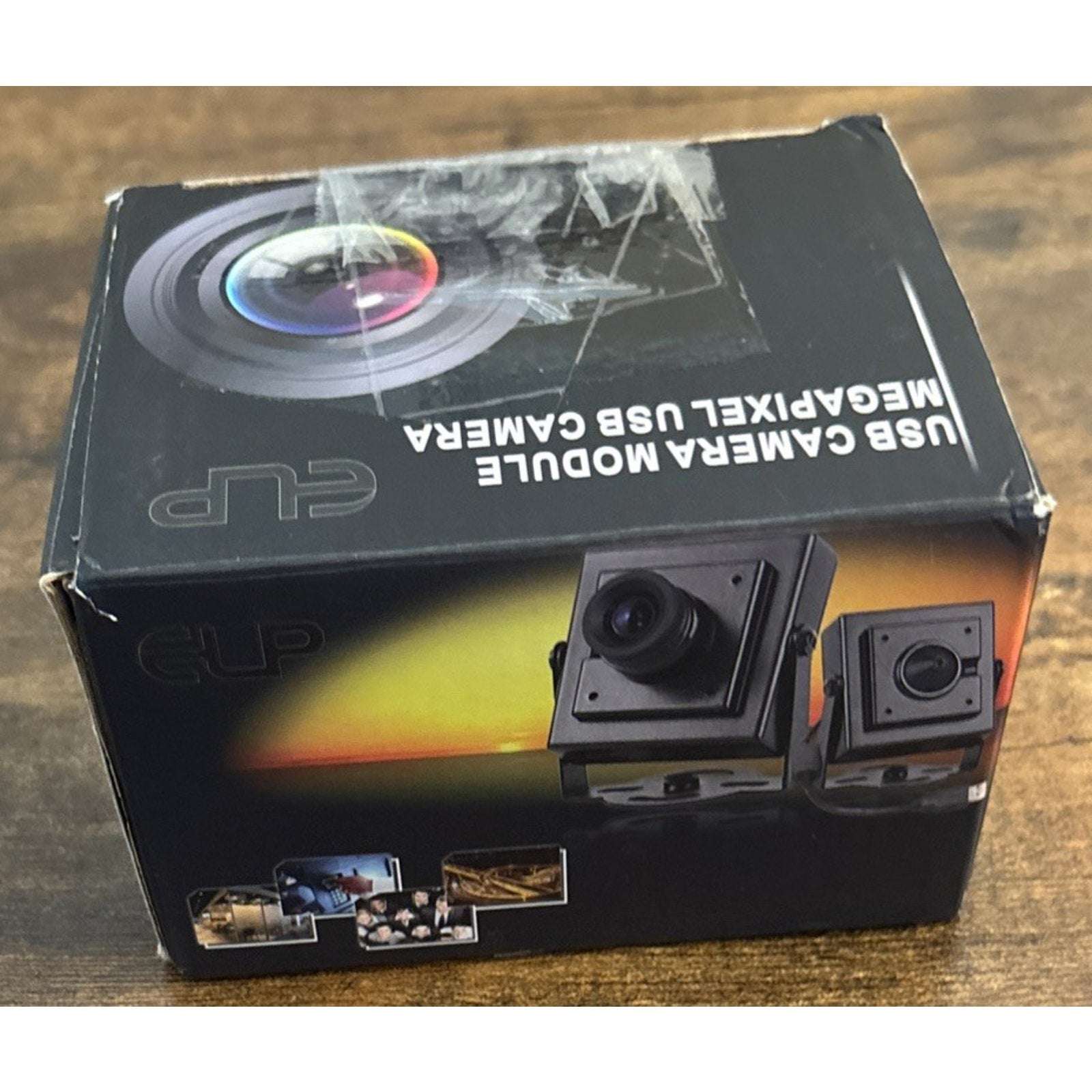

*** New in Open Box. Box opened to check and test unit. Unit pictured is the exact one you will receive ***

*** EVERY item has individual pictures taken and descriptions written and both are checked and rechecked to ensure you are being shipped the correct item and that the item was pictured and described correctly. However, I am sure I will make a mistake at times...in that case please just email me and I will make the situation right!!! I truly value your Feedback and 5 Star Ratings!!!

Thank you for your business!!!! Come back anytime as we list new items several times a week!!!
